Friday, 10 March 2017

Universal remote control setup codes for TVs, VCRs and other devices

What are the universal remote control setup codes for TCL, Hitachi, Upstar, RCA, Dynex, Hisense, Philips, Element and Panasonic devices
Universal Remote Codes for TCL (Roku) TV
ATT Uverse = 1346
Bright House Cable = 1756
Cablevision = 031
Charter = 11756
Comcast = 11756
Cox = 1756
DirecTV = 11756
Dish Network = 535
ONN = 3851
RCA = 11756
Time Warner = 387 or 1566
TIVO = 0091 or 0366
Verizon = 180
4 Digit Universal Remote Control Codes For Hitachi TVs
Hitachi 4 digit TV remote codes
1004 1009 1010 1013 1053 1057 1058
1065 1078 1083 1113 1114 1115 1128 1173
Hitachi TV Codes
1004 1011 1012 1051 1052 1084 1086 1087
1102 1225 1384
Hitachi DVD Codes
2000 2027 2126 2173 2240
Hitachi Amplifier Code
6034
Hitachi HDTV Codes
1030 1132 1133 1134 1191 1208 1209
1210 1211 1212 1226
Hitachi VCR Codes
3052 3055 3117 3169
Hitachi Receiver Tuner Code
5159
5 digit remote codes for Dynex TV = 10463 11463, 11780, 11785
4 digit remote codes for Dynex TV = 0490, 0463, 0783, 1944, 1250, 0464
5 digit remote codes for DYNEX TVs
10180 10178 10171 10623 11963 10096
10463 10154 10236 10463
4 digit codes to use with your DYNEX TV
0177 0185 0282 0039 0280 0038 0154 0236
0463 0180 0178 0179 0019 0623
ON MOST REMOTES
1. Turn on the TV.
2. Press and hold the TV and SEL buttons simultaneously for 3 seconds. The button will light.
3. With the button lit, point the remote at the TV and enter the TV’s 3, 4, or 5 digit code.
4. Verify by pressing the VOLUME + button. This should turn the TV VOLUME up.
5. Press the TV button to store the 3, 4, or 5 digit code. The button will blink twice to confirm the code is stored.
DYNEX TV can be controlled with a universal remote and work with Comcast, Dish Network, Direct TV, RCA, etc…
Upstar TV Universal Remote Control Codes
0037 0056 0442 0001 0370 1178 0002
0009 0702 0774 0093 0217 0448 0747
0482 0370 0264 0329 0090 0032 0216
0290 0154 0150 0092 0072 0179 0208 0519
ON MOST REMOTES
1. Turn on the TV.
2. Press and hold the TV and SEL buttons simultaneously for 3 seconds. The button will light.
3. With the button lit, point the remote at the TV and enter the TV’s 3, 4, or 5 digit code.
4. Verify by pressing the VOLUME + button. This should turn the TV VOLUME up.
5. Press the TV button to store the 3, 4, or 5 digit code. The button will blink twice to confirm the code is stored.
Your Upstar TV can be controlled with a universal remote and work with Comcast, Dish Network, Direct TV, RCA, etc…
RCA TV Remote codes, use the below codes to control your RCA TV with a universal remote.
5 digit codes for most programmable universal remote controls for RCA televisions are
11547 11447 10047 10093 10679 11047 11147 11247 11347
11781 11948 11953 12002 12187 12247 12434
The following 5 digit codes will work with your Sceptre TV
10878 11217 11360 11599
10000*
The following 4 digit codes will work with your Sceptre TV
0991 0000 0080
NOTE: If you have the RC64 remote, try codes 10878, 11217, 11360, and 11599.
Codes listed with an asterisk (*) are possible alternate codes for your TV. These alternate codes should operate the primary functions of your device in most cases (Power, Volume Up and Down, Mute).
Setup Instructions
1. Set the “Mode Switch” to TV.
2. Press and hold the “Mute” button and the “Select” button until the visible LED blinks twice.
3. Enter the 5 digit Code
The following code are the most popular for your Sceptre brand TV = 11360 11217 10878 11599 10000.
3, 4 & 5 Digit Universal Remote Control Codes For Hisense TVs
Codes to operate your Hisense TV
Hisense 3 digit remote codes
759
Hisense 4 digit remote codes
0073 0182 0216 0848 0208 0009 0145 0156
0227 0508 0696 0748 0753 0821 1170 0780
Hisense 5 digit remote codes
12183 10748 11758
TO USE THE HISENSE CODES WITH YOUR REMOTE – FOLLOW THE GENERAL INSTRUCTIONS BELOW:
1 Press and hold the clear TV button at the top until all 4 lights illuminate.
2 Select the code.
3 Press the pound button 1 time.
4 Go to the top and press the red power button until the TV turns off
Philips
Philips HDTV CODES
1129 1236 1237 1239 1261
1334 1351 1390 1411
Philips TV Codes
1004 1007 1011 1017 1018 1047
1053 1056 1057 1059
Philips DVD Codes
2032 2033 2045 2051 2091 2109
2156 2157 2158 2159
Philips Audio Codes
4006 4027 4039 2304
Philips Amplifier Codes
6047
Philips VCR Codes
3016 3036 3047 3061 3071 3135
3160 3173 3208 3216
Philips Receiver Tuner Codes
5000 5112 5138 5143 5145 5154
ON MOST REMOTES
1. Turn on the TV.
2. Press and hold the TV and SEL buttons simultaneously for 3 seconds. The button will light.
3. With the button lit, point the remote at the TV and enter the TV’s 3, 4, or 5 digit code.
4. Verify by pressing the VOLUME + button. This should turn the TV VOLUME up.
5. Press the TV button to store the 3, 4, or 5 digit code.
The button will blink twice to confirm the code is stored
Panasonic
Codes to operate your Panasonic TV
Panasonic HDTV Codes
1140 1169 1170 1194 1233 1234
1331 1336 1410 1417 1442
Panasonic TV Codes
1003 1010 1049 1053 1096 1123
1152 1231 1289 1292 1295
Panasonic DVD Codes
2031 2066 2075 2076 2104 2105
2106 2111 2151 2153 2154
Panasonic Audio Codes
4005 4018 4030 4038 4050 4051 4063 4050
ON MOST REMOTES
1  Turn on the TV.
2  Press and hold the TV and SEL buttons simultaneously for 3 seconds. The button will light.
3  With the button lit, point the remote at the TV and enter the TV’s 3, 4, or 5 digit code.
4  Verify by pressing the VOLUME + button. This should turn the TV VOLUME up.
5  Press the TV button to store the 3, 4, or 5 digit code. The button will blink twice to confirm the code is stored.
Your Panasonic TV can be controlled with a universal remote and work with Comcast, Dish Network, Direct TV, RCA, etc…
Codes to operate your Element TV
Newer codes 5 digit
11886 10178 11687 12183
Older codes 3 digit
046 005 028 043 048 076 096 155 004
051 127 151 153 154 231 236 238 247
252 168 121
ON MOST REMOTES
1  Turn on the TV.
2  Press and hold the TV and SEL buttons simultaneously for 3 seconds. The button will light.
3  With the button lit, point the remote at the TV and enter the TV’s 3, 4, or 5 digit code.
4  Verify by pressing the VOLUME + button. This should turn the TV VOLUME up.
5  Press the TV button to store the 3, 4, or 5 digit code. The button will blink twice to confirm the code is stored.
[Element TV can be controlled with a universal remote and work with RCA remotes, Comcast, DirecTV, Charter, and more.]

Wednesday, 8 March 2017

How to disassemble Fisher and Paykel smartdrive electronic washing machine

COMPLETE DISASSEMBLY
Ensure power and water supplies are disconnected before servicing. There is still mains power within the console when on/off switch in the off position.
1. Isolate from the power supply.
2. To remove the lid, open it to the upright position and lift it clear.
An anti-static wrist strap must be used when handling electronic modules. Clip the strap to the earth terminal at the rear of the top deck. Modules removed from Smartdrive for return must be protected from possible electrostatic damage while in transit by the use of the specialised packaging in which they were received.
3. Remove the 2 screws from the rear of the top console, disconnect the earth lead. The console can now be raised for access to the Motor Controller Module, Display Module and associated wiring.
4. Disconnect the pressure tube from the pressure sensor.
5. Disconnect display module plug, the motor/pump harness plug and Rotor Position Sensor plug.
Remove the pump earth lead and mains cable earth lead from the Motor Controller Module.
Remove the plugs from the back of the mains cable clamp, undo the 2 screws holding the clamp and remove the clamp from the console feed the mains cable earth wire through the cable clamp opening.
NB: DON’T REMOVE THE EARTH CONNECTION FROM THE WRAPPER
6. Remove the two rubber buffers and screws from the front of the top deck. Release the retaining clips at rear of cabinet using a flat bladed screwdriver. Lift the top deck clear, feeding wiring through hole in top deck corner of the cabinet.
[The top deck cannot be hinged back without first releasing the rear clips from the cabinet and lifting at the same time.]
7. Unclip the bias spring from the front left suspension rod. Unclip the neck ring from the top of the outer bowl.
8. Remove the fabric softener dispenser, unscrew the agitator retaining nut and remove the agitator.
9. The inner bowl may now be lifted clear. (If the inner bowl is not easy to lift clear, then remove the three spline retaining screws and remove the driven spline.
Then pull the drive spline off the shaft and lift out the inner bowl).
If not already removed, the clutch can be disassembled at this stage by removing the three screws from the driven spline.
10. Remove the screw from the drain hose outlet bracket on the rear of the wrapper.

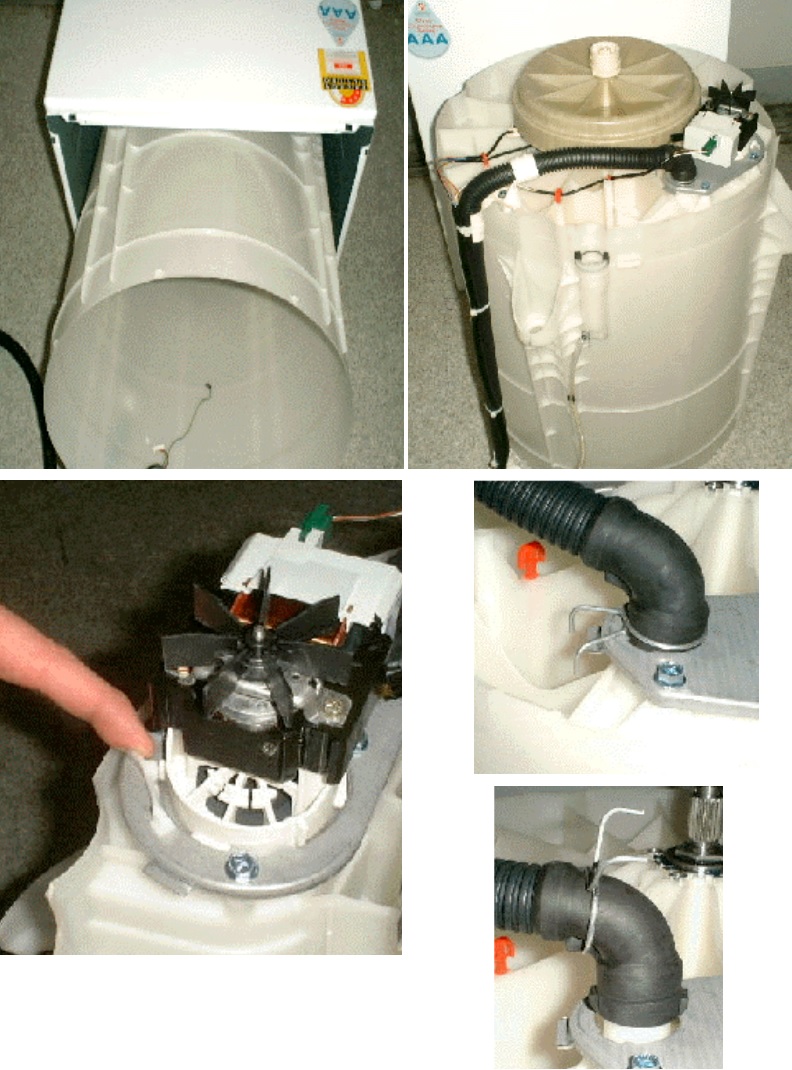

11. Unclip the harness duct from the right hand rear suspension and remove the suspension assembly by lifting the corner bracket upwards, and free the suspension assembly from the outer bowl.
12. Feed the drain hose inside the wrapper. Clip the drain hose fixture over the outer bowl with the attached hook.
13. Remove the remaining three suspension rod assemblies.
14. Lay the cabinet on its back, on protective material, and slide the outer bowl assembly out, but note that approximately 1 litre of water must be removed from the pump sump before laying the cabinet on its back.
15. To remove the pump, release the locking tab. Turn the pump anti-clockwise, lift it clear and remove the electrical connections.
16. Remove the two screws securing the wiring duct to the outer bowl base.
17. Remove the drain hose clamp. Twist the drain hose in an anti-clockwise direction to release the bayonet fitting. If changing the outer bowl, the pump securing plate can be removed at this stage by unscrewing the 4 x 3/8" securing bolts.
18. Remove the clamp from the pressure tube and pull the tube off the spigot on the pressure chamber.
19. Unclip the pump harness and then remove the complete assembly.
