System configuration:
System:
DVT6200
Main
unit: DVR6200
Speaker:
KSW6200
How to open the tray, if it does not come out [when there is no power]
Insert
a flat screwdriver in the drawing through the hole on the loading chassis
bottom, and pull the lever down.
Pull
out the tray frontward by hand when it comes just out.
Caution on condensation
Condensation
(of dew) may occur inside the unit when there is a great difference in
temperature between this unit and the outside. This unit may not function
properly if condensation occurs. In this case, leave the unit for a few hours
and restart the operation after the condensation has dried up.
When
this unit is carried from one place to another across a large difference in
temperature, when the humidity in the room where this unit is installed
increases, etc
Schematic

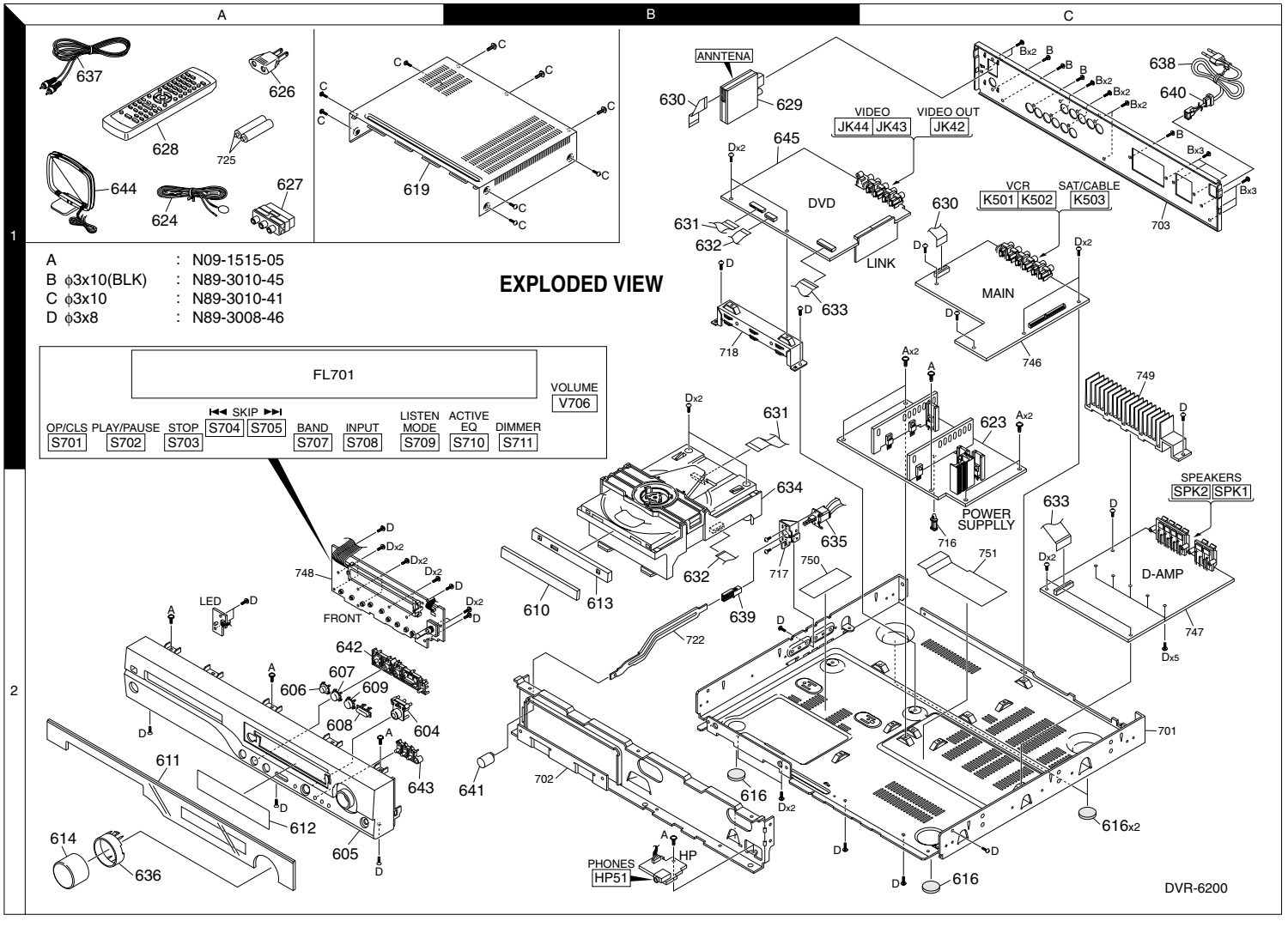

Exploded View
SMPS
(PSP-2571)
Standby LED Blinking / Flashing: check and replace D21
1N5819 [at SMPS]
No + 5V: Check and replace 5M0165R at SMPS
No + 5V: Check and replace 5M0165R at SMPS
